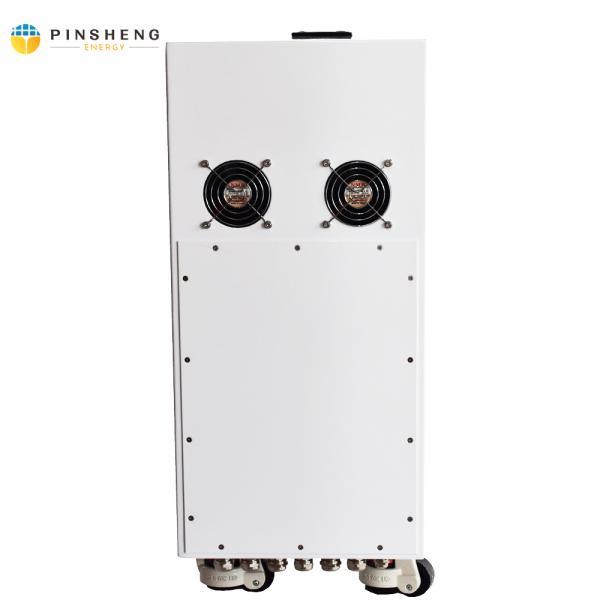

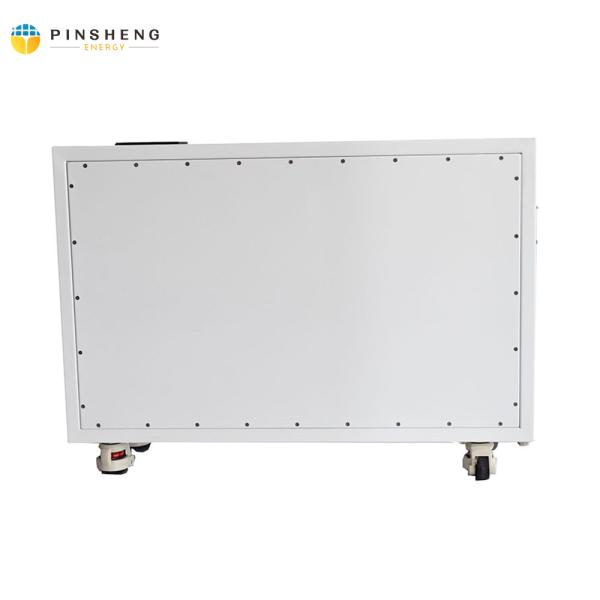

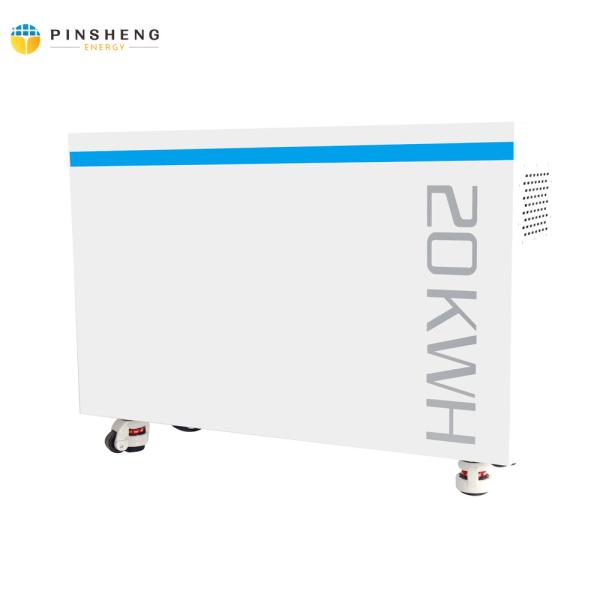

rechargeable home energy storage solutions 10kw 20kwh lifepo4 lithium battery pack with bms

Name: rechargeable home energy storage solutions 10kw 20kwh lifepo4 lithium battery pack with bms
Brand: Pinsheng energy
Price: 1 USD

China rechargeable home energy storage solutions 10kw 20kwh lifepo4 lithium battery pack with bms wholesale

Battery Type : Lithium Ion, LiFePO4

Model Number : PSW20230106005

Brand Name : Pinsheng energy

Place of Origin : China

Anode Material : LFP

Diamention : 482mm(L)x442mm(W)x365mm(T)

Weight : 86.5kgs

Discharging Limit Voltage : 51.2V

Capacity : 200AH

Cycle life : >3000 Cycles(80% DOD@C2, 25℃)

Certification : CE ROHS MSDS UN38.3 ISO9001

Application : Solar energy storage system

OEM/ODM : Accepatable

Packaging Details : One Battery One Wooden Case

Port : Shenzhen

Supply Ability : 1000 Piece/Pieces per Month

MOQ : 2 pieces

Price : $1,199.00/pieces 2-9 pieces

Contact Now

rechargeable home energy storage solutions 10kw 20kwh lifepo4 lithium battery pack with bms

Product Description

Product type	48V 400AH
Battery Type	LiFePO4
Nominal Voltage	48V DC
Capacity	400Ah, 19200Wh @C2, 25℃
Operating Voltage Range	40V DC-54V DC
Cycle Life @ 80% DOD	＞4000 Cycles(80% DOD @C2, 25℃)
Dimensions	980mm(L)x620mm(W)x276mm(T)
Serialization	15S2P
Weight	182kgs
Charge Current	200A Continuous
Discharge Current	400A Continous
Charging Shut-off Voltage	40V
Discharging Limit Voltage	57.6V
Over-current Protection	440A, 10s Dela
Charging Under/Over Temp Protection	0℃/55℃
Discharging under/over Temp Protection	-20℃/60℃
Balance Current	≤200mA
Self-Discharge Rate	＜3% Per Month

rechargeable home energy storage solutions 10kw 20kwh lifepo4 lithium battery pack with bms

Product Usage

Application

Solar energy, wind energy, power generation and energy storage

Application

Solar panels,mountain communication base station,communication base station energy storage,backup power,home energy storage,industrial energy storage
