High Capacity Special Lithium Battery 24V 22mAh Long Cycle Life 500 Times
Model: 24V 22Ah
Specification: 240mmX165mmx84mm
Features: effective discharge rate ≥75%, charge cut-off voltage 29.4V, discharge cut-off voltage 17.5, working current 5A, maximum operating current 11A, aluminum alloy, black under -40°C working environment
Application:
LED strip/panel/light
Camera/IP Camera
Car camera recorder
Router/Switch
POS machine
Solar energy storage
Speaker and so on
| | | Number | HY00052 |
| Version | A0 |
| HYLF/24/22-001 Battery pack specification | Date | 2019-5-7 |
| 1．Basic characteristics | Product picture |
| Product name | Low temperature lithium battery | Working characteristics:-40℃4,0.2C,75%. It was left at -40 ° C for 4 hours, discharged at 0.2 C, and the effective discharge rate was not lower than 70% of the normal temperature capacity. |
| product code | HYLF/24/22-001 |
| L x W x H | 240mmX165mmx84mm |
| Rated voltage | 25.9VSeries structure |
| Rated Capacity | 22Ah |
| Serialization | 7S |
| Internal resistance | ≤120mΩ |
| Discharge cutoff voltage | 17.5V | Shell color ☑ Sub black □ Bright gray □ +Fruit green + bright gray two-color □ White □ Blue thermoplastic film Charging and discharging interface □ Wall terminal □ Anderson ☑ Navigation plug □ Positive and negative lines □ Pole □ Hardware contact |
| Charging protection voltage | 29.4V |
| Max.charging voltage | 29.75V |
| Max. charging current | 8A |
| Maximum discharge current | 11A |
| Peak current | 25±2A 2S |
| Rated discharge current | 5A |

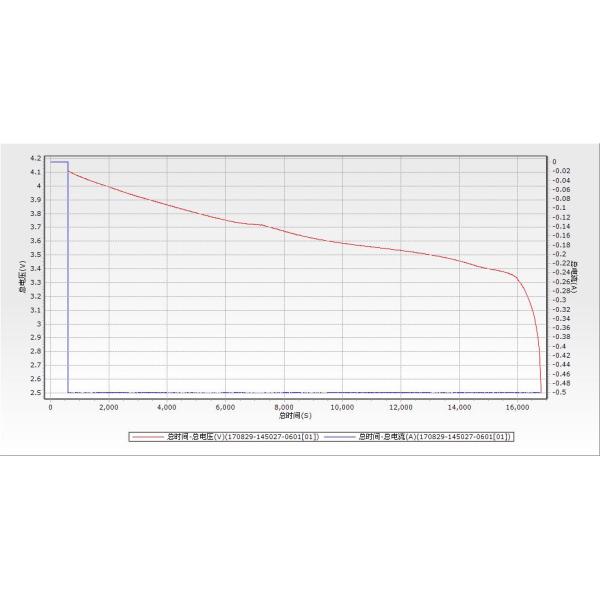

| Charging method | CC/CV | 18650Low temperature 18650 cell discharge curve:
|
| weight | 5.6kg |
| Operating temperature | Charging | 0～45℃ |
| Discharge | -40～55℃ |
| 60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months | -10～35℃ |
| C1 Cycle life Cycle life | 500 Times |
| price | RMB:¥ 00.00 |
| Delivery period | 25 Working day |
Storage:
· To ensure that the battery maintains the capacity level, it is recommended that the battery and battery pack be stored at -20 to 35 ° C, low humidity, non-corrosive gas;
· The battery should be stored at high temperature or higher humidity, otherwise it will cause the battery to leak, rust, and low capacity;
.Long-term storage may result in reduced battery and battery capacity and up to 1-3 charge / discharge cycles to achieve maximum discharge capacity;
· After three months of battery storage, you need to cycle and charge once and charge to more than 80% of the standard capacity.
